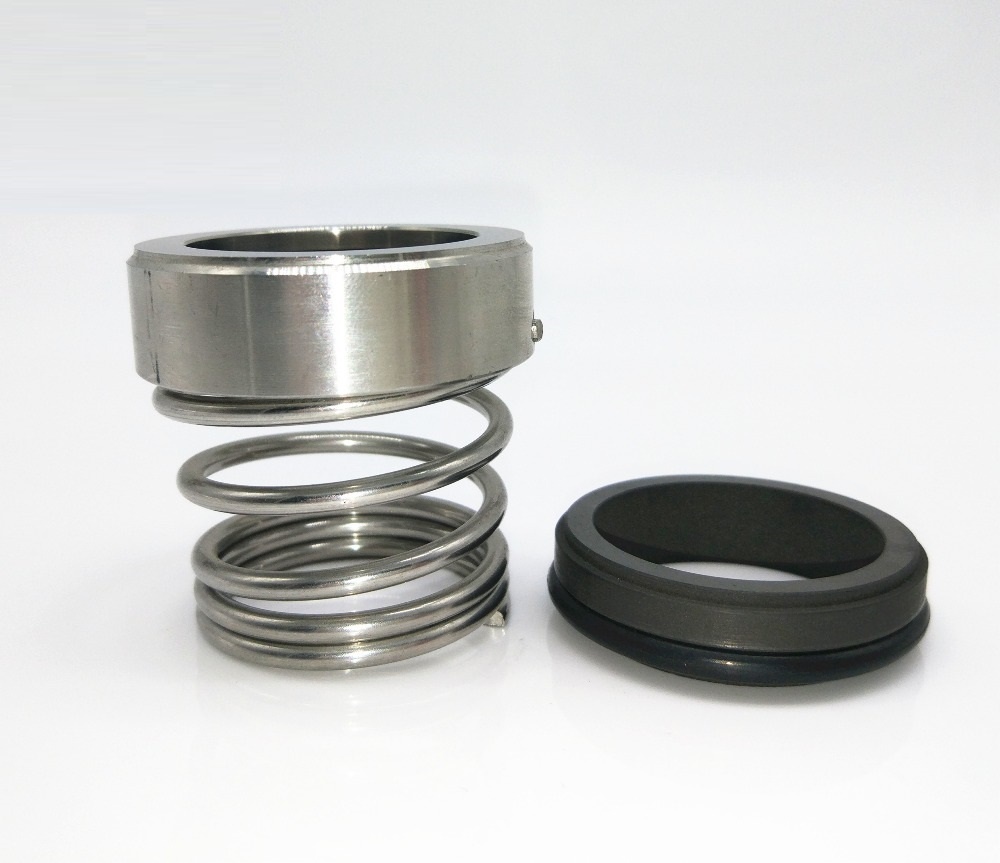

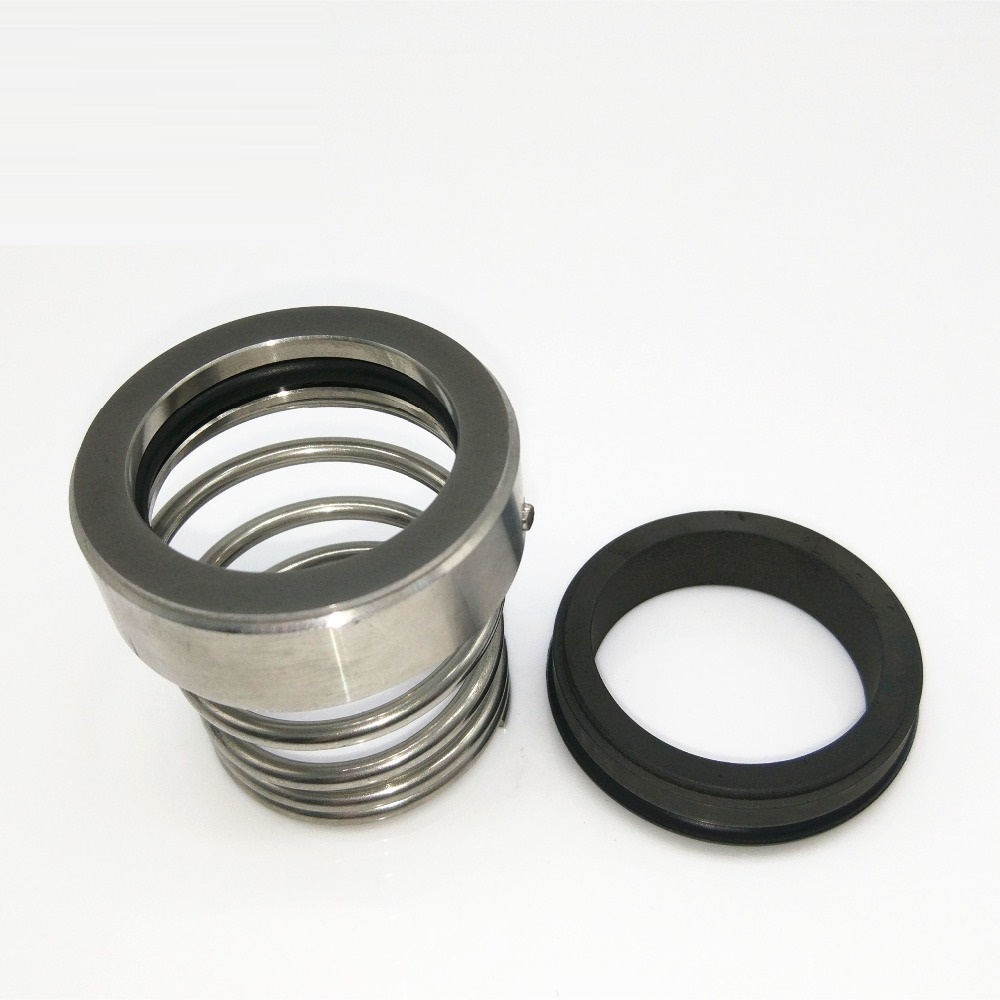

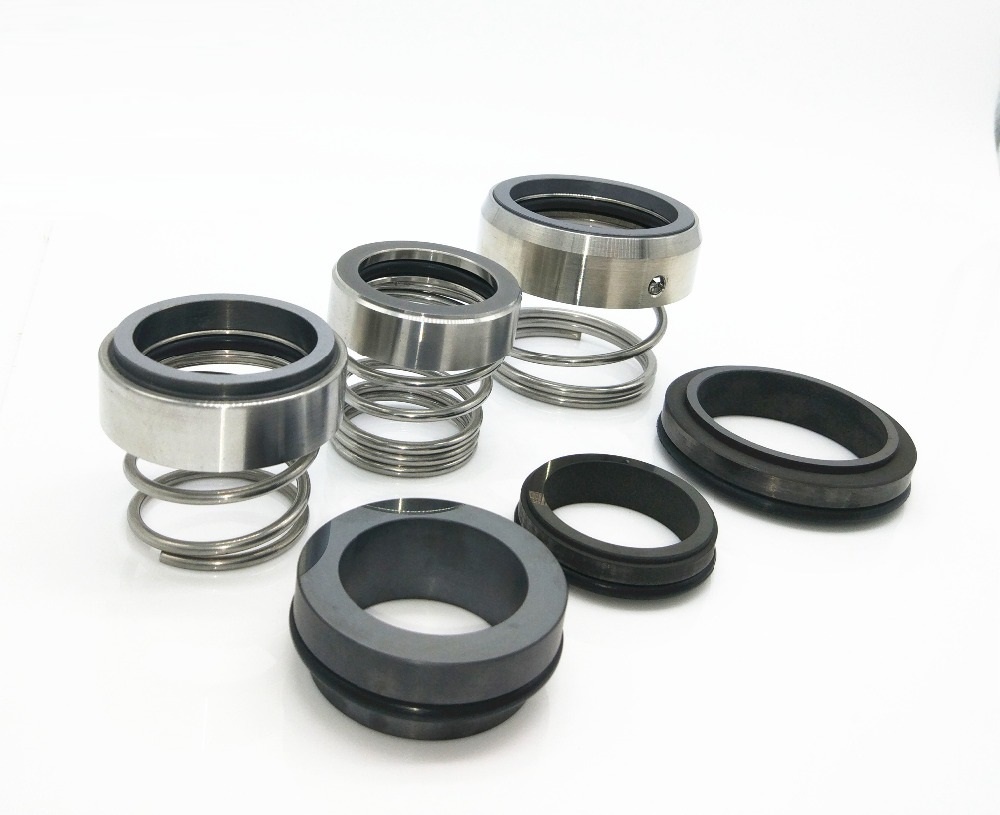

Mechanical Seal M3N Z2 Rotary Ring Burgman Mechanical Seal For Submersible Sewage Pump

Operational Conditions:

1. Burgman mechanical seal m3n is structural simple and reliable. It has a wide application scope.
   M3n, mechanical seal is suitable for clean water pumps, sewage pumps, submerged pumps, process pumps, etc.
   This also can provide important material certifications available. Salvador, Senior, Sandy.
2. Temperature: -20ºC to 180ºC, depend on o-ring material
3. Pressure: Up to 10 bar
4. Speed: Up to 10 m/s
5. End play/axial float allowance ±1mm

•  Materials:
• Stationary Ring: Ceramic, Silicon Carbide, TC
• Rotary Ring: Carbon, Silicon Carbide
• Secondary Seal: NBR, EPDM, , PTFE
• Spring and Metal Parts: Steel
• 3. Seat Type:
• 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Performance Capabilities:


Temperature	-30ºC to 200ºC, dependent on the elastomer
Pressure	Up to 10 bar
Speed	Up to 15 m/s
End play/axial float allowance	±0.1mm
Size	14-100MM
Brand	BE
Face	Carbon, SiC, TC
Seat	Ceramic, SiC, TC
Elastomer	NBR, EPDM, etc.
Spring	SS304, SS316
Metal parts	SS304, SS316
Idividual Packing	Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
