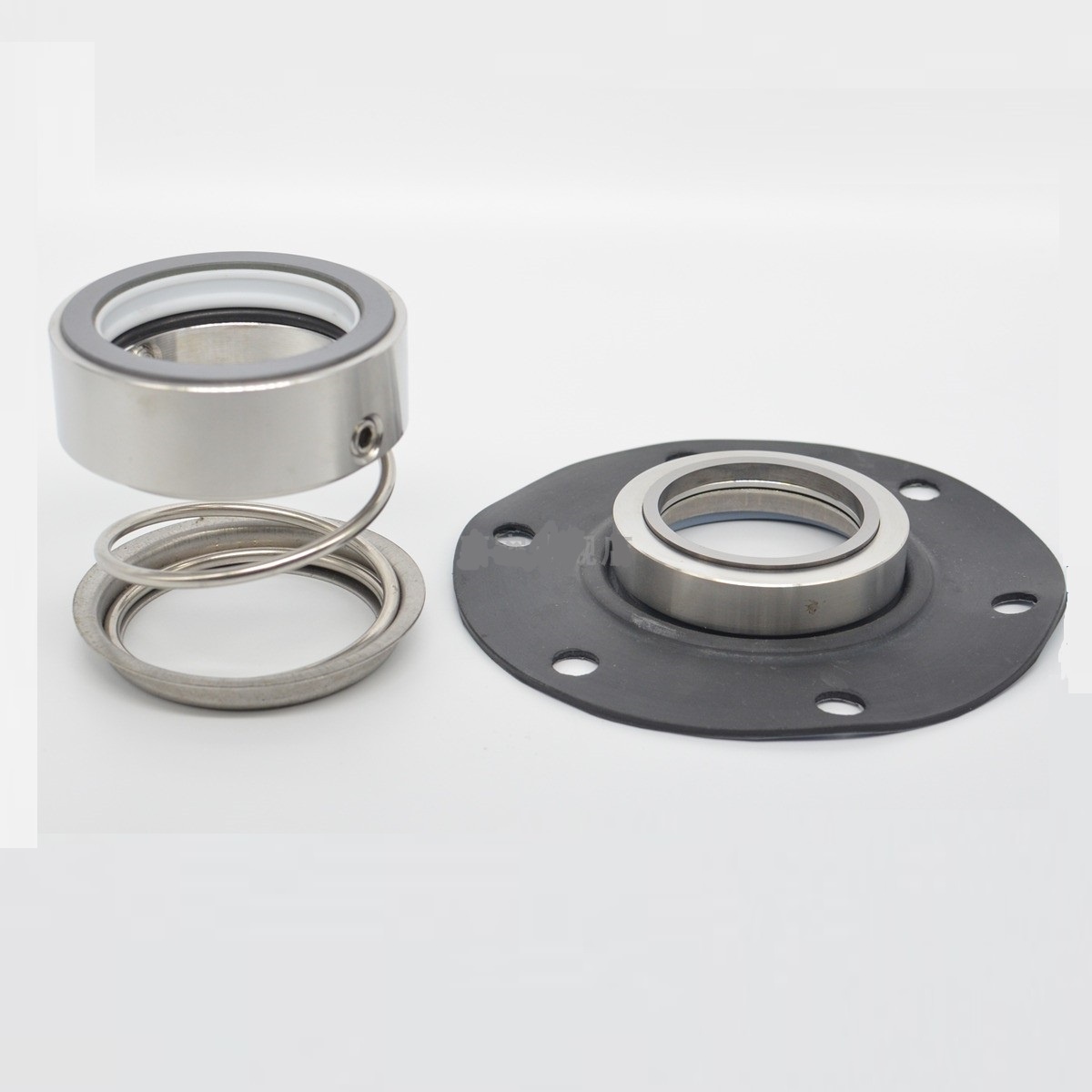

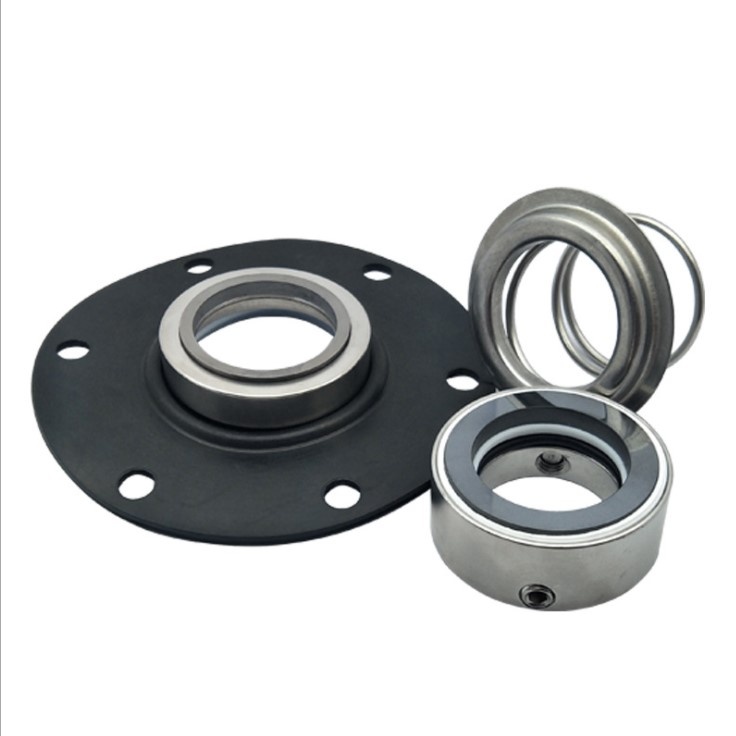

1048 Mechanical Seal for Chemical Pump Multipurpose Mechanical Seal for Medium Sized Printing and Dyeing

1048 mechanical seal for chemical pump multipurpose mechanical seal for Medium sized printing and dyeing
Operational Conditions:
  1. Texile Machine Dyeing Pump Seal 1048 35mm Chemical Standard Mechanical Seal
  2. Temperature: -20ºC to 180ºC, depend on o-ring material
  3. Pressure: Up to 10 bar
  4. Speed: Up to 10 m/s
  5. End play/axial float allowance ±1mm
  •  Materials:
  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, , PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids
Performance Capabilities:

Temperature
-30ºC to 200ºC, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
25mm,35mm
Brand
BE
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
