Rubber O Ring Seal Brown Hydraulic FKM O-Ring Seal Ring Sealing Ring FKM NBR Ffkm Silicone Vmq Oring
- Product No.：FKM O RING SEAL
Description-FKM O-Ring Seal:

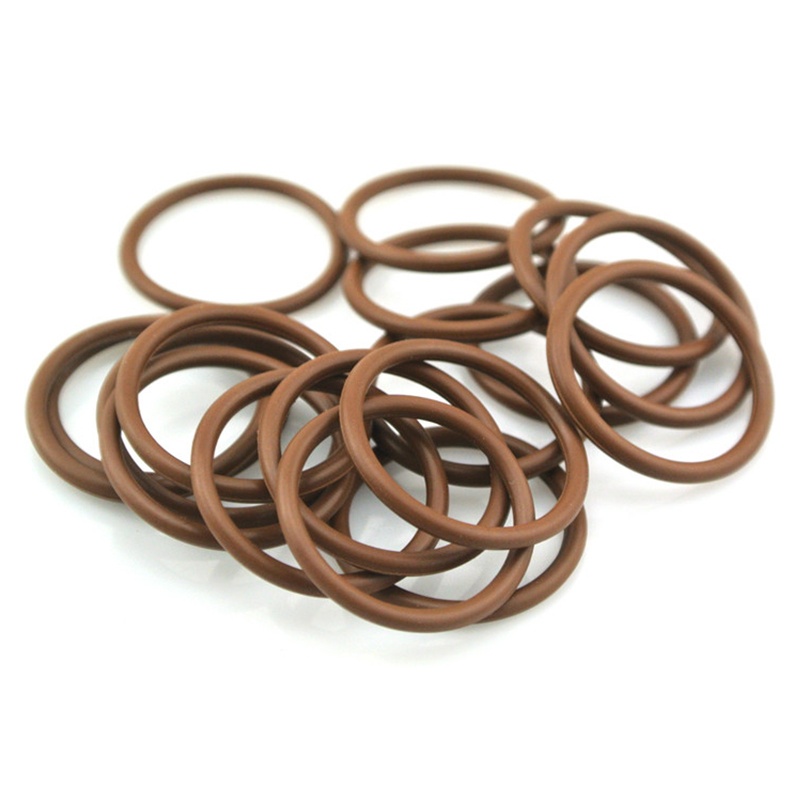

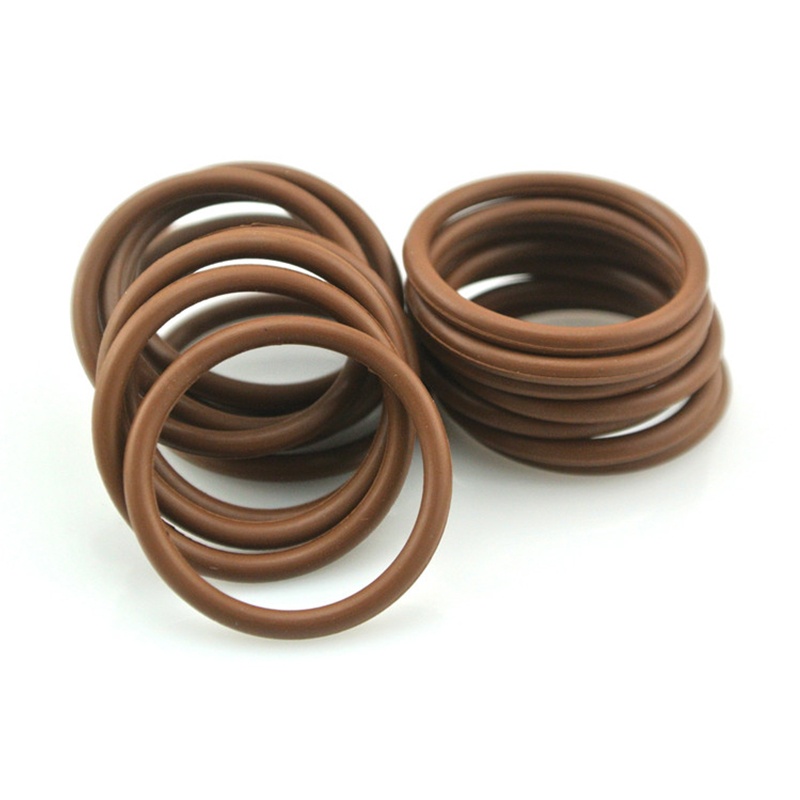

FKM O-ring seals
FKM o-rings and sealing gaskets are made of fluorocarbon elastomers and are extensive used over a wide span of industries.
The characteristics of FKM o-rings and seals made them highly desirable in many applications. Chemical resistance and temperature range, with a low compression set and durability have made fluorocarbon elastomers a highly sought after compound for a wide range of applications.
The use of FKM o-rings and seals can be found in the aerospace industry and the automotive industry, and in applications where seals are expected to come into contact with aggressive chemical media at elevated temperatures. FKM, FPM or Viton, are resistant to many chemical media including silicone oil and greases, aromatics, fuel oils, petrol, mineral oils and more.

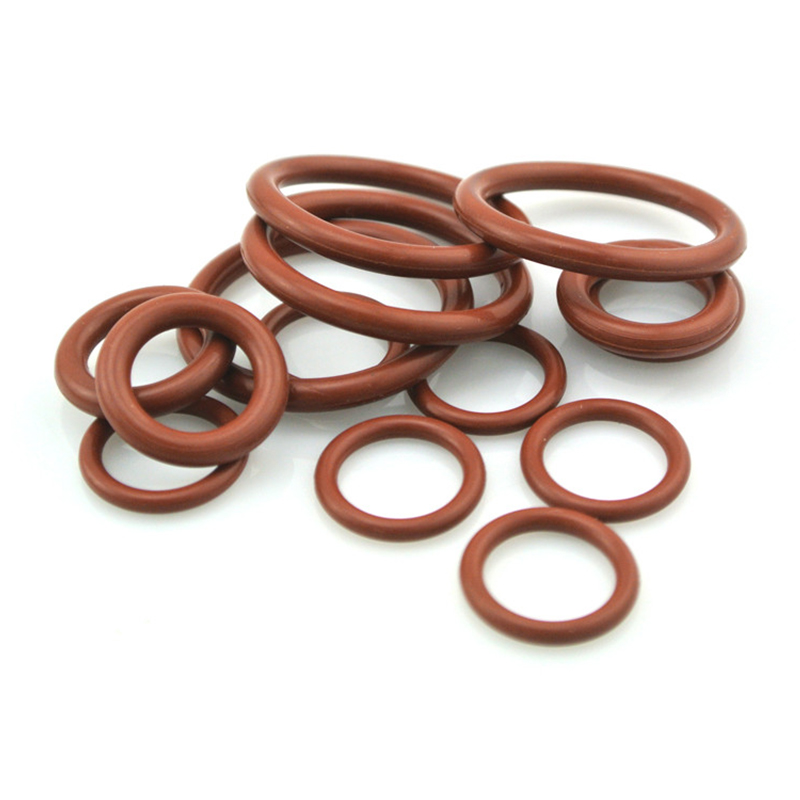

Rubber O-ring seals
O-ring rubber seals are available in a very wide range of gasket and o-ring types, including natural rubber as well as a large array of other elastomer and compound products.
Nitrile O-ring seals
Against water, gasoline, petroleum oils, crude oil, propane and some hydraulic fluids
Silicone O-ring seals
Good resistance to ozone, acids, water, and decent resistance to weathering and heat, making them great for outdoor applications.
| Material | NBR ,SILICONE,EPDM,FKM,HNBR,etc |
| Color | Black, Transparent, White, red, green, as customers' requirement |
| Size | customers requirements |
| Hardness | 30-90 shore according to work environment |
| Service | OEM or ODM |
| Production basis | Samples or drawings |
| Technology | compression, injection or extrusion |
| Working temperature | -60-350 Celsius degree |
| Tolerance | ±0.05mm |
| Density | 1.0-2.0g/cm² |
| MOQ | 100 pcs rubber o ring |
| Working life | 10-30years |
| Sample | Sample is free from stock |
| Application | Mechanical equipment. Automotive ,Construction,Home appliance,Aviaiton,Office facilities and so on |
| performance | 1.Good sealing and damping 2.Water resistance 3. Anti-aging 4.Anti- ozone 5.oil resistant 6.pressure resistant |
| Rubber O-Ring Seals | ||||
| Material | Hardness (Shore A) | Temperature | Size | |
| Standard Size | Available | |||
|
NBR(Buna,Nitrile) FKM(FPM) EPDM Silicone(VMQ) HNBR FFKM(FFKM,Kalrez) |
60-90 70-90 60-90 10-70 60-90 70-90 |
-40ºC-110ºC -20ºC-220ºC -45ºC-150ºC -55ºC-204ºC -48ºC-180ºC -18ºC-326ºC |
AS-568(USA) JIS-B2401(Japan) DIN-3771(Germany) BS-1516(UK) ISO3601(International) R(France) |
ID≤2000mm CS≤40mm |
| Resistance | Color | Certificate | Application | |
|
Hydraulic Fluid Engine Oil Chemical Ozone Steam & Hot Water Low Temperature High Temperature |
Black Brown Red Green White Blue Clear Customized |
IS09001 ISO14001 TS16949 RoHS REACH F D A S G S |
Auto Industry Construction Machinery Machine Tool Equipment Food Health Water Treatment Chemical Processing Hydraulic Pneumatic Industrial Manufaturing |
|
These are just a few of the sizes. And we can also custom the size of your requirements.
Please contact us to tell me your request.
