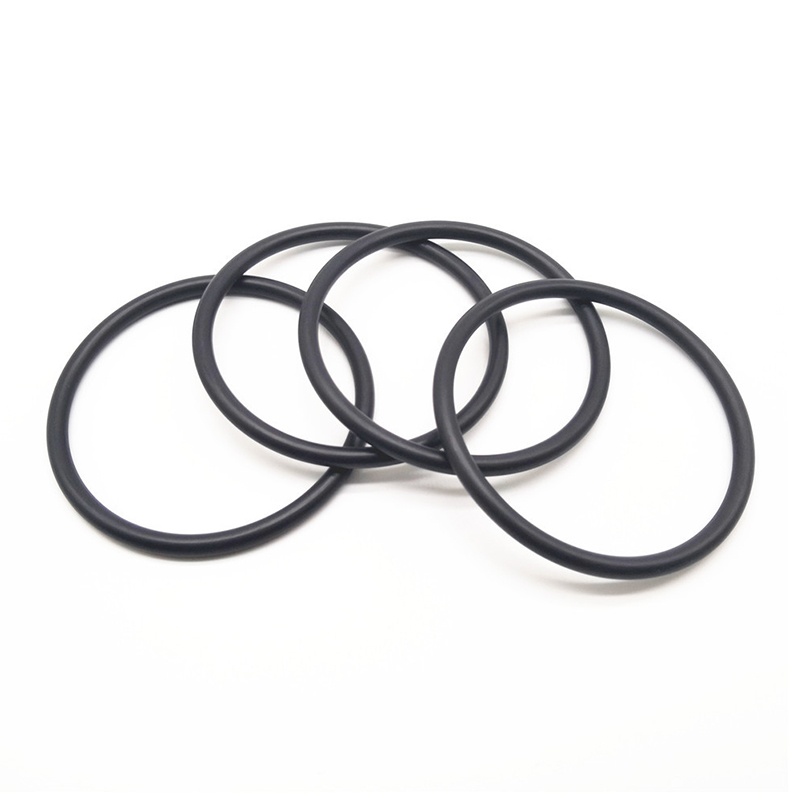

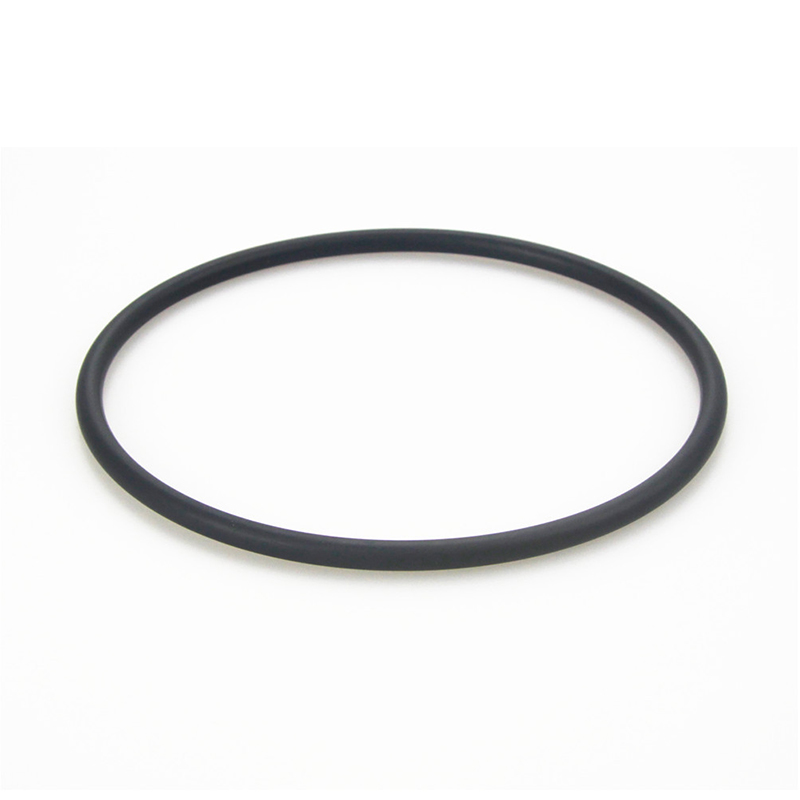

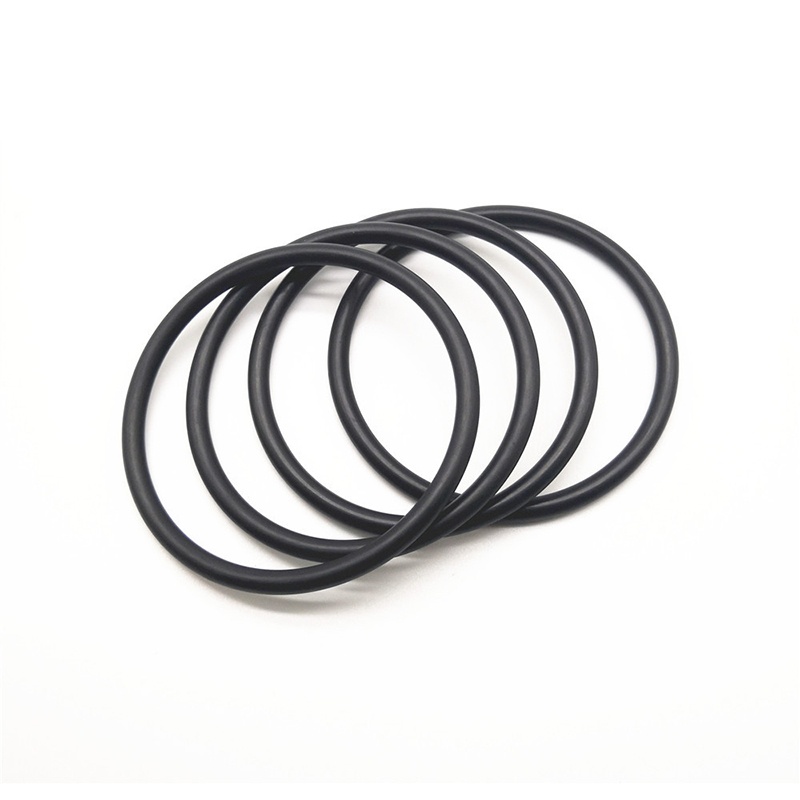

Nitrile Rubber Oil Resistant Wear Resistant NBR O-Ring Rubber O Ring Seal O Ring Seal Ring
- Product No.:NBR O RING SEAL
Description-NBR O-Ring Seal:
Rubber O-ring seals
O-ring rubber seals are available in a very wide range of gasket and o-ring types, including natural rubber as well as a large array of other elastomer and compound products.
Nitrile O-ring seals
Against water, gasoline, petroleum oils, crude oil, propane and some hydraulic fluids
Silicone O-ring seals
Good resistance to ozone, acids, water, and decent resistance to weathering and heat, making them great for outdoor applications.
Material | NBR ,SILICONE,EPDM,FKM,HNBR,etc |
Color | Black, Transparent, White, red, green, as customers' requirement |
Size | customers requirements |
Hardness | 30-90 shore according to work environment |
Service | OEM or ODM |
Production basis | Samples or drawings |
Technology | compression, injection or extrusion |
Working temperature | -60-350 Celsius degree |
Tolerance | ±0.05mm |
Density | 1.0-2.0g/cm² |
MOQ | 100 pcs rubber o ring |
Working life | 10-30years |
Sample | Sample is free from stock |
Application | Mechanical equipment. Automotive ,Construction,Home appliance,Aviaiton,Office facilities and so on |
performance | 1.Good sealing and damping 2.Water resistance 3. Anti-aging 4.Anti- ozone 5.oil resistant 6.pressure resistant |
Rubber O-Ring Seals | ||||
Material | Hardness (Shore A) | Temperature | Size | |
Standard Size | Available | |||
NBR(Buna,Nitrile) FKM(FPM) EPDM Silicone(VMQ) HNBR FFKM(FFKM,Kalrez) |
60-90 70-90 60-90 10-70 60-90 70-90 |
-40ºC-110ºC -20ºC-220ºC -45ºC-150ºC -55ºC-204ºC -48ºC-180ºC -18ºC-326ºC |
AS-568(USA) JIS-B2401(Japan) DIN-3771(Germany) BS-1516(UK) ISO3601(International) R(France) |
ID≤2000mm CS≤40mm |
Resistance | Color | Certificate | Application | |
Hydraulic Fluid Engine Oil Chemical Ozone Steam & Hot Water Low Temperature High Temperature |
Black Brown Red Green White Blue Clear Customized |
IS09001 ISO14001 TS16949 RoHS REACH F D A S G S |
Auto Industry Construction Machinery Machine Tool Equipment Food Health Water Treatment Chemical Processing Hydraulic Pneumatic Industrial Manufaturing |
These are just a few of the sizes. And we can also custom the size of your requirements.
Please contact us to tell me your request.Products Category
