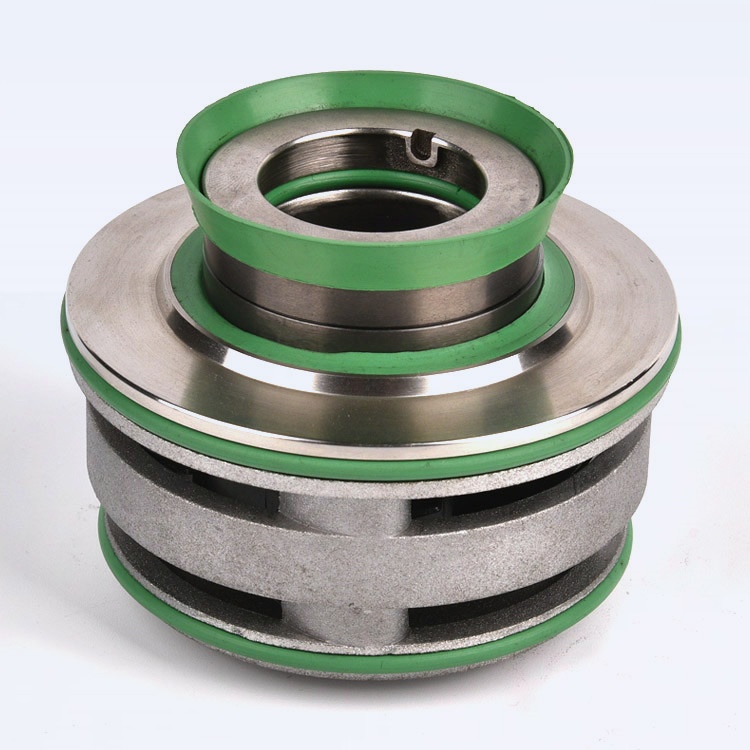

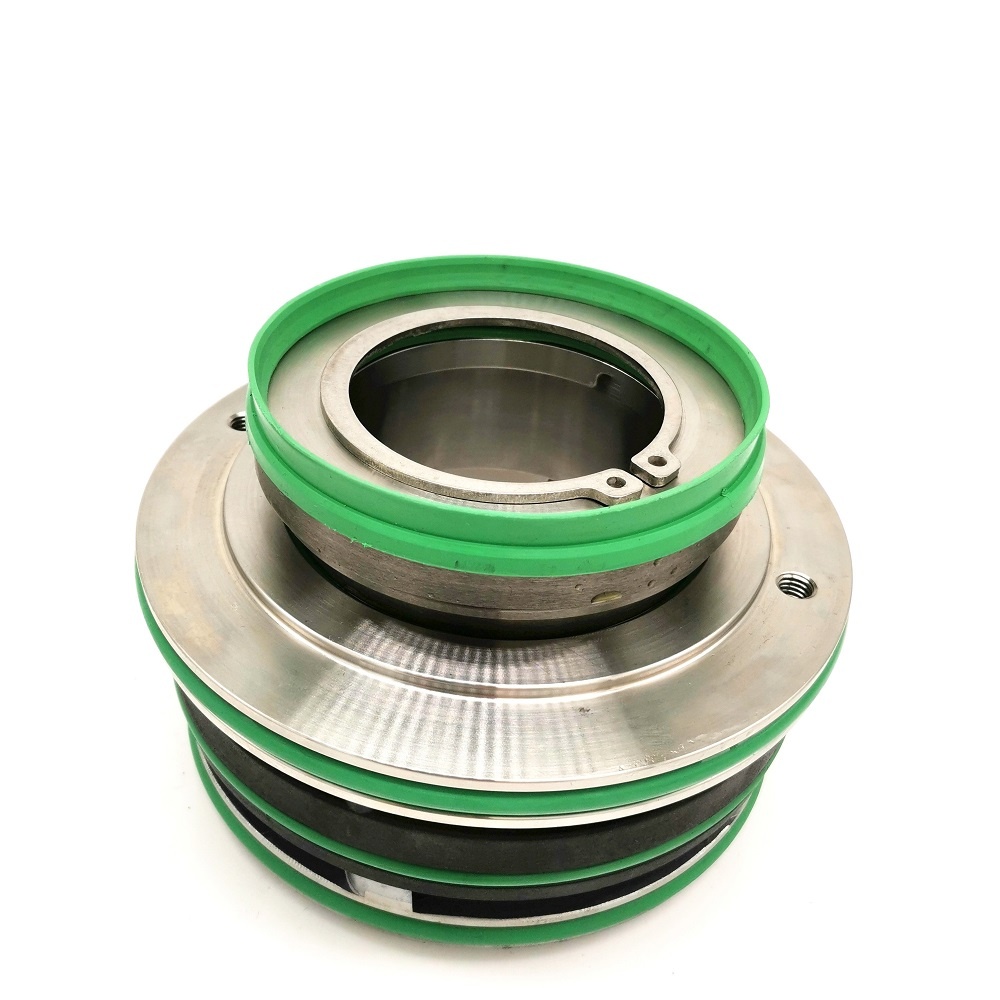

Mechanical Seal 90MM Cartridge Seal For Flygt Plug-in 3301/5150.350/550.360

Operational Conditions:

1. Cartridge Mechanical Seal in Tungsten carbide/Tungsten carbide/Viton-Tungsten carbide/Tungsten carbide/Viton
2. To Suit Grindex Drainage Range Dewatering Pumps. Models: Minex, Minette, Minor, Major. Or Grindex Sludge Pump Range. Models: Salvador, Senior, Sandy.
3. Temperature: -20ºC to +180ºC
4. Pressure: ≤2.5MPa
5. Speed: ≤15m/s

 Materials:

• Stationary Ring: Ceramic, Silicon Carbide, TC
• Rotary Ring: Carbon, Silicon Carbide
• Secondary Seal: NBR, EPDM, Viton, PTFE
• Spring and Metal Parts: Steel
• 3. Seat Type:
• 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Performance Capabilities:

Temperature	-30℃ to 200℃, dependent on the elastomer
Pressure	Up to 10 bar
Speed	Up to 15 m/s
End play/axial float allowance	±0.1mm
Size	90MM
Brand	BE
Face	Carbon, SiC, TC
Seat	Ceramic, SiC, TC
Elastomer	NBR, EPDM, etc.
Spring	SS304, SS316
Metal parts	SS304, SS316
Idividual Packing	Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.



• 90mm flygt plug in mechanical seal for flygt pump 3301/5150.350/550.360
• 1. Plug in 90 is for Flygt Pump Model:3301/5150.350/550.360
• 2. Our seals can replace the original seals.
• 3.Application: seals are primarily used in the chemical sector and in water pumps.
• 4.Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards
• 5.OEM and Customized products is welcomed.
• 6. Factory Price,High Quality ,Fast Delivery and Best Sevice.
• 7.if you need 20mm ,you can contact us ,

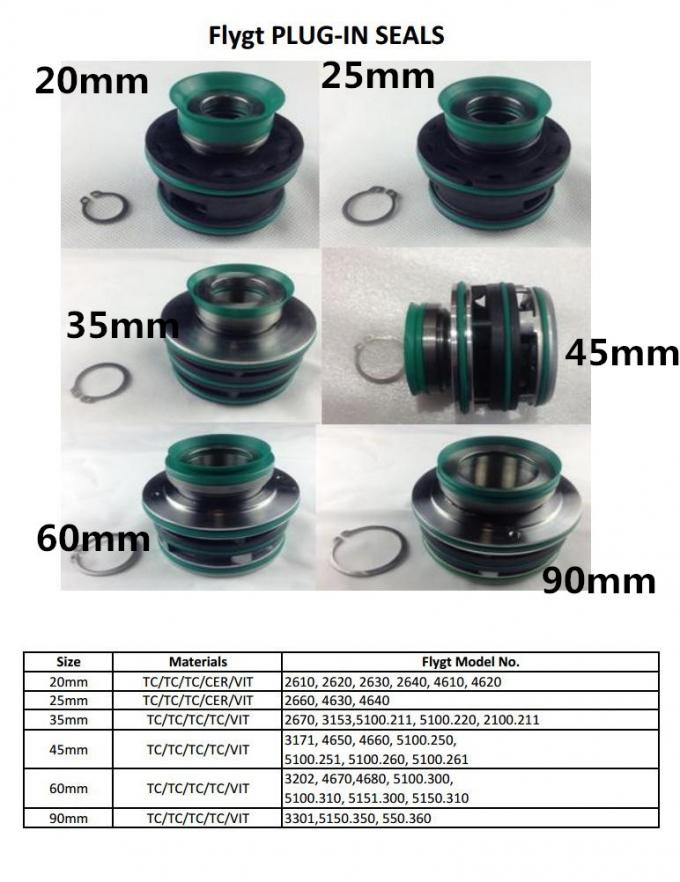

Seal Code	Size	Material	Fits Flygt Pumps/Mixers
20	20mm	TC/TC-TC/TC/V	2610,2620,2630,
			2640,4610 & 4620
25	25mm	TC/TC-TC/TC/V	2660,4630 & 4640
35	35mm	TC/TC-TC/TC/V	2670,3153,5100.210,
			5100.211,5100.220 & 5100.221
45	45mm	TC/TC-TC/TC/V	3171,4650,4660,5100.250,
			5100.251,5100.260 & 5100.261
60	60mm	TC/TC-TC/TC/V	3202,4670,4680,5100.300,
			5100.310,5150.300 & 5150.310
90	90mm	TC/TC-TC/TC/V	3301,5150.350 & 5150.360
