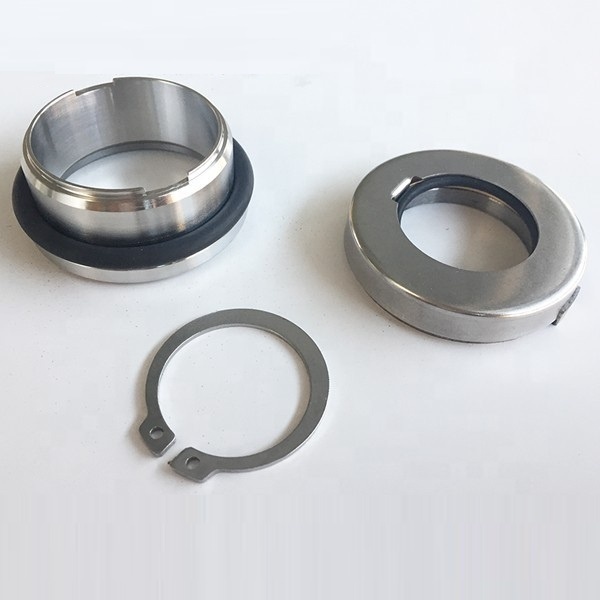

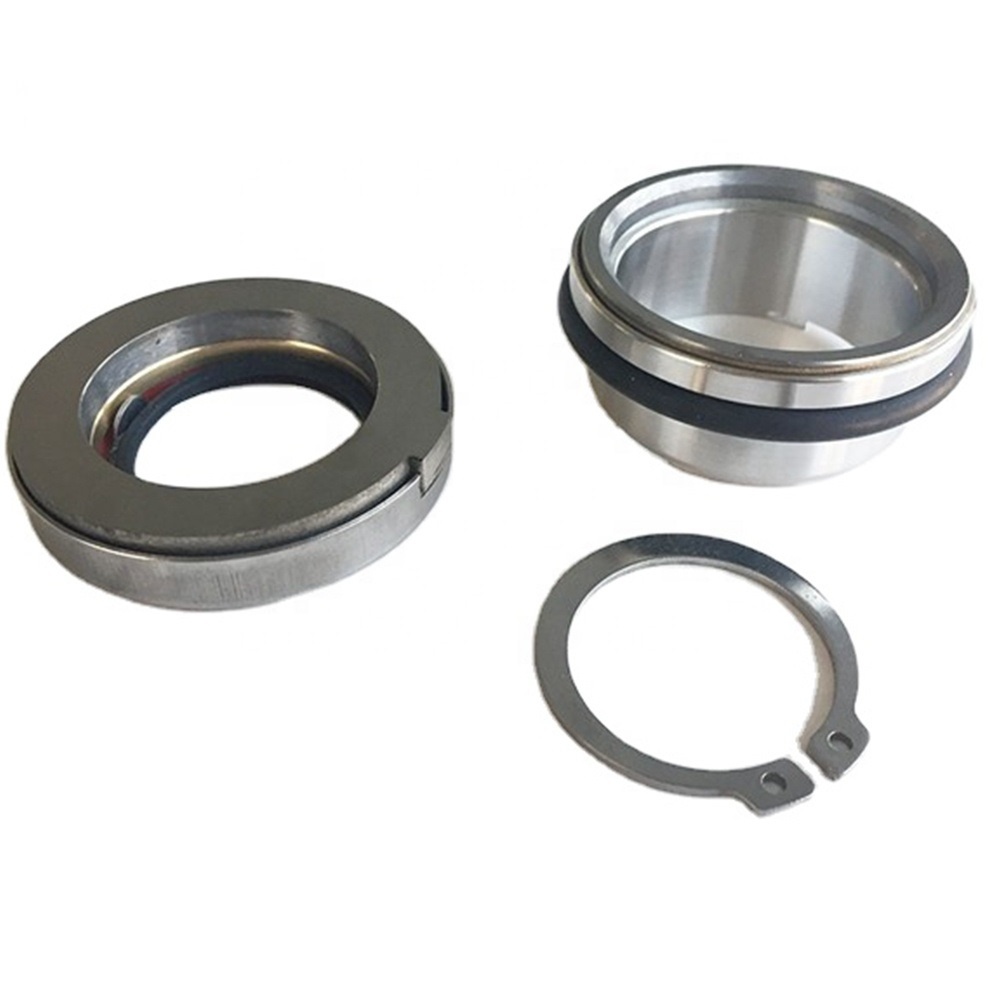

Mechanical Seal Flygt Seal 45mm Flygt 3140 3152 4650 4660 Mechanical Pump Seals

Operational Conditions:

1. Cartridge Mechanical Seal in Tungsten carbide/Tungsten carbide/Viton-Tungsten carbide/Tungsten carbide/Viton
2. To Suit Grindex Drainage Range Dewatering Pumps. Models: Minex, Minette, Minor, Major. Or Grindex Sludge Pump Range. Models: Salvador, Senior, Sandy.
3. Temperature: -20ºC to +180ºC
4. Pressure: ≤2.5MPa
5. Speed: ≤15m/s

 Materials:

• Stationary Ring: Ceramic, Silicon Carbide, TC
• Rotary Ring: Carbon, Silicon Carbide
• Secondary Seal: NBR, EPDM, Viton, PTFE
• Spring and Metal Parts: Steel
• 3. Seat Type:
• 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Performance Capabilities:

Temperature	-30℃ to 200℃, dependent on the elastomer
Pressure	Up to 10 bar
Speed	Up to 15 m/s
End play/axial float allowance	±0.1mm
Size	45MM
Brand	BE
Face	Carbon, SiC, TC
Seat	Ceramic, SiC, TC
Elastomer	NBR, EPDM, etc.
Spring	SS304, SS316
Metal parts	SS304, SS316
Idividual Packing	Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.



• 45mm is for 3140 3152 4650 4660
• 1. It  is 45mm for  Flygt 3140 3152 4650 4660 Mechanical seal Pump replacement seal
• 2. Our seals can replace the original seals.
• 3.Application: seals are primarily used in the chemical sector and in water pumps.
• 4.Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards
• 5.OEM and Customized products is welcomed.
• 6. Factory Price,High Quality ,Fast Delivery and Best Sevice.
•

FLYGT PUMP SEAL COMPARISON CHART
Flygt Pump Model	Shaft Size	Supseals Upper Seal	Supseals Lower Seal
3085-091,3085-120,3085-170,3085-171,3085-181,3085-280,3082-290,3085-890	20mm	FS-G-U20	FS-G-L20 or FS-H-L20
3101	28mm	FS-B-U28	FS-B-L28
3102	25mm	FS-J-U25	FS-J-L25
3126-90,3126-180	35mm	FS-K-U35	FS-K-L35
3126-91, 3126-280, 3126-290	35mm	FS-K-U35	FS-M-L35
3126-181, 3127	35mm	FS-M-U35	FS-M-L35
3140, 3152	45mm	FS-O-U45	FS-O-L45
3170, 3201	60mm	FS-Q-U60	FS-Q-L60
3200	60mm	FS-P-U60	FS-P-L60
3230, 3300-91, 3300-181,3300-280, 3300-980, 3305	90mm	FS-S-U90	FS-S-L80
3310, 3311, 3312, 3350, 3351	90mm~120mm	FS-S-U90	FS-T-L120
3355, 3356, 3357	90mm	FS-S-U90	FS-S-L80
3500, 3501,3530,3531,3600,3601, 3602	90mm~120mm	FS-S-U90	FS-T-L120
4351, 4352, 4400	20mm	FS-G-U20	FS-H-L20
4410, 4430	60mm	/	FS-Q-L60
4440, 5530	35mm	FS-M-U35	FS-M-L35
4650, 4660	45mm	FS-O-U45	FS-O-L45
4670, 4680, 7045	60mm	FS-Q-U60	FS-Q-L60
7050, 7051, 7055, 7060,7061,7076, 7556	90mm	FS-S-U90	FS-S-L80
7080, 7115	90mm~80mm/90mm~120mm	FS-S-U90	FS-S-L80 /FS-T-L120
7570, 7585	90mm~120mm	FS-S-U90	FS-T-L120
Grindex Maior, Master, Matador,Midi, Minette, Salvador	25mm~24mm	FS-Z-U25	FS-Z-L24
Grindex Maxi	45mm	FS-O-U45	FS-N-L45
Ready models 4 8 12 & 16	15mm	FS-D-U15	/
Ready 24	20mm	FS-A-U20	FS-A-L20
Ready 90	28mm	FS-I-U28	FS-I-L28
Steaty 7	20mm	FS-G-U20	FS-G-L20
600	60mm	FS-Q-U60	FS-Q-L60
605, 615, 665, 670, 680	90-80mm	FS-S-U90	FS-S-L80
705, 715, 720, 721, 735, 745, 760, 765, 770, 775	90mm~80mm/90mm~120mm	FS-S-U90	FS-S-L80/FS-T-L120
820, 840, 841, 860 ,880, 881, 900	90mm~80mm/90mm~120mm	FS-S-U90	FS-S-L80/FS-T-L120
2004, 2008, 2012, 2016	15mm	FS-D-U15	/
2024	20mm	FS-A-U20	FS-A-L20
2050, 2052	15mm	FS-D-U15	/
2060	20mm	FS-G-U20	FS-G-L20
2066	20mm	FS-A-U20	FS-A-L20
2070	22mm	FS-E-U22	FS-E-L22
2071	22mm	FS-E-U22	FS-E-L22
2075	20mm	FS-A-U20	FS-A-L20
2082, 2090, 2125, 2140	28mm	FS-I-U28	FS-I-L28
2084, 2135	35mm	FS-K-U35	FS-K-L35
2101	20mm	FS-A-U20	FS-A-L20
2102-40	22mm	FS-E-U22	FS-E-L22
2151-10	35mm	FS-K-U35	FS-K-L35
2151-11, 2151-50	35mm	FS-K-U35	FS-L-L35
2201-10,2201-320,2201-430,2201-480	45-35mm	FS-O-U45	FS-K-L35
2201-590, 2201-690	45mm	FS-O-U45	FS-O-L45
2201-11HT or MT	45-35mm	FS-N-U45	FS-N-L35
2201-11LT	45mm	FS-O-U45	FS-N-L45
2250, 2290	60mm	FS-P-U60	FS-P-L60
2400	60mm	FS-R-U60	FS-R-L60
3041-281	20mm	FS-G-U20	FS-G-L20
3057	20mm	FS-G-U20	FS-H-L20
3057-180, 3060	20mm	FS-G-U20	FS-G-L20
3065	20mm	FS-A-U20	FS-A-L20
3067-170, 3067-250, 3068	20mm	FS-G-U20	FS-G-L20
3080	20mm	FS-A-U20	FS-A-L20
3082	22mm	FS-E-U22	FS-E-L22
3231	90-75mm	FS-S-U90	FS-U-L75
