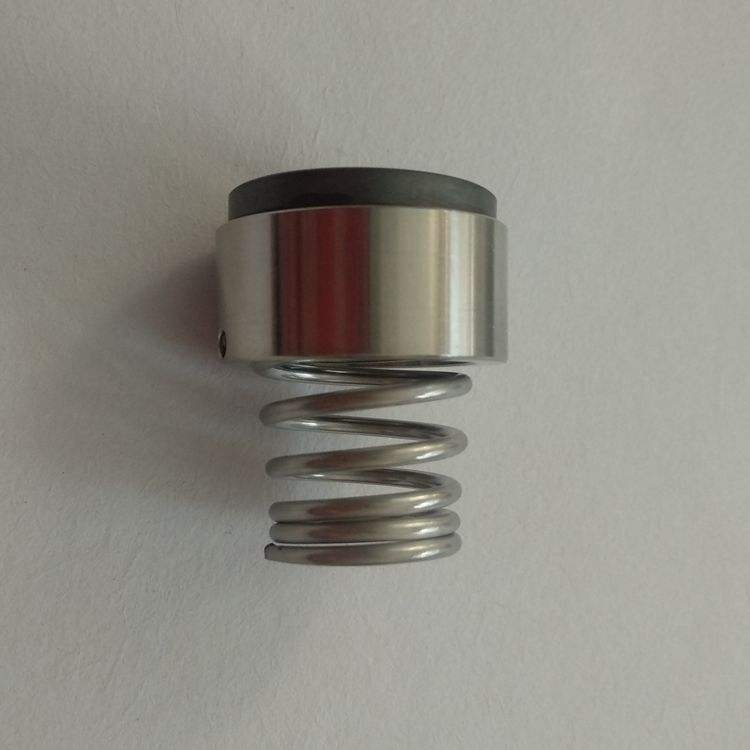

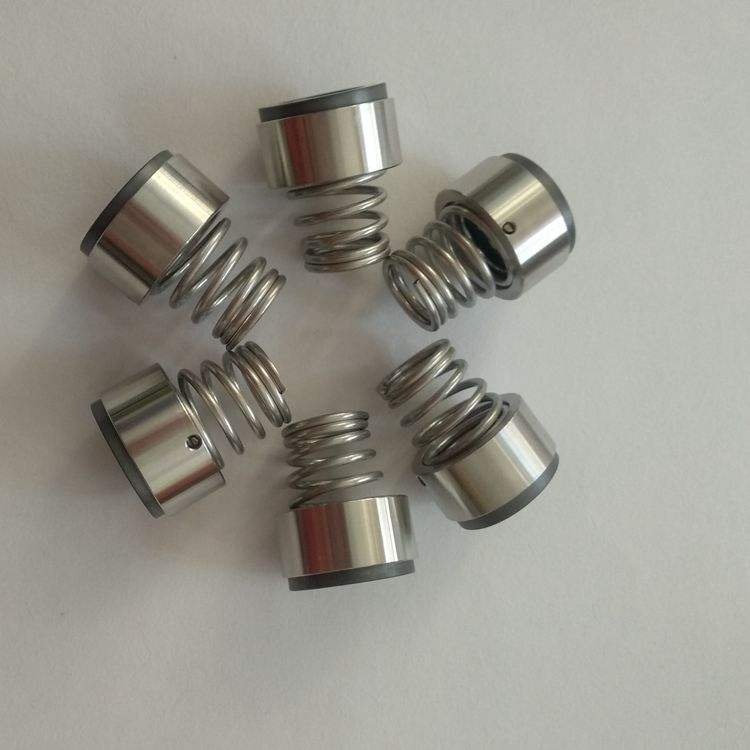

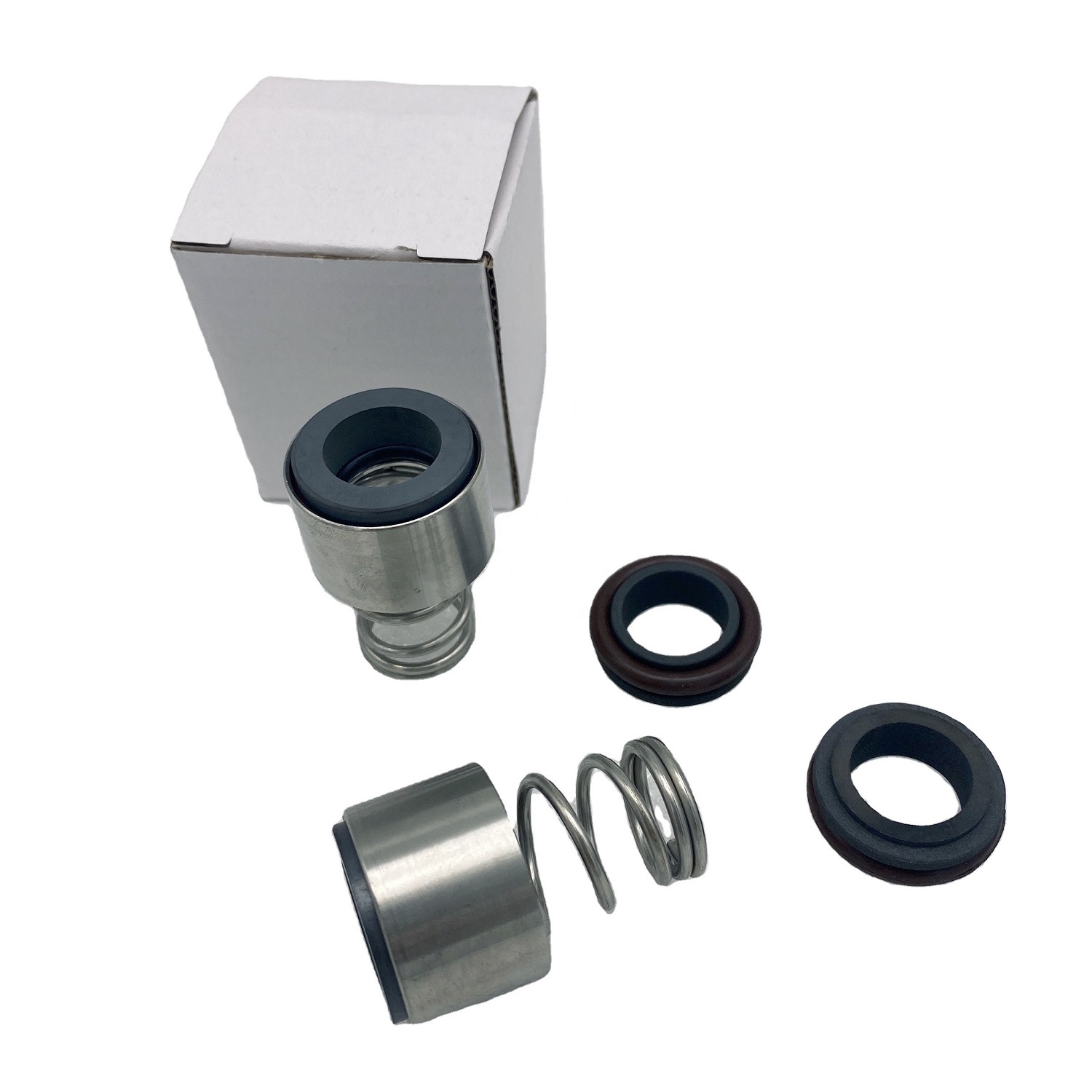

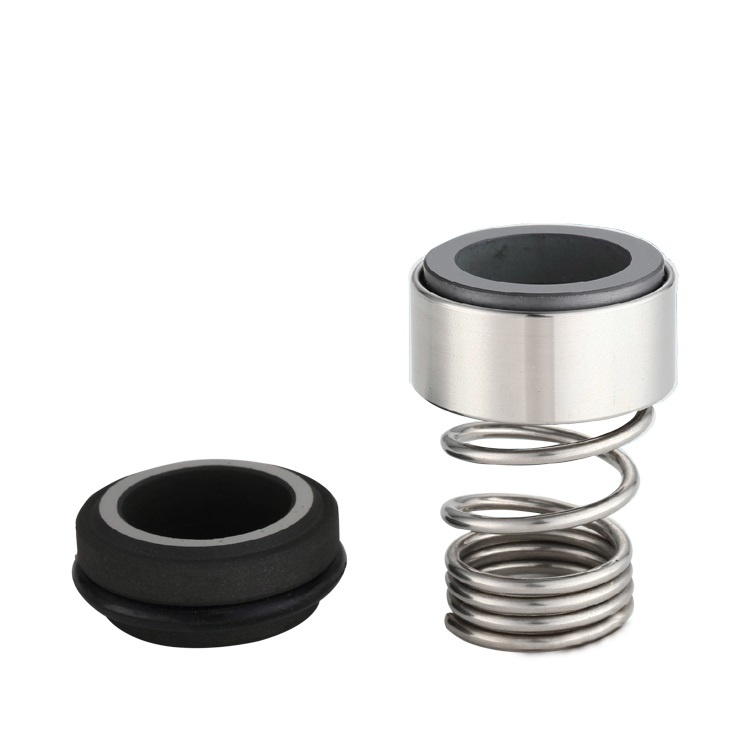

Mechanical Seal Lowara Pump Seal for Sv and Svi Series Pumps Lowara-12-X
- Product No.:Lowara-12-X
Mechanical Seal Lowara Pump Seal For SV and SVI Series Pumps Lowara-12-X Seal
Description:
Operating Range:
1.LWB-12 is identical to sv- and svi- series lowara pumps
2. Our seals can replace the original seals.
3.Application: seals are primarily used in in Clean water,sewage water,oil and other moderately corrosive fluids etc
4.Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards
5.OEM and Customized products is welcomed.
Material:
Rotary Ring: Carbon/Sic/TC
Stationary Ring: Ceramic/Sic/TC
Secondary Seal:VIT/NBR/EPDM
Spring and Other Parts:SUS304/SUS316
Operational conditions:
Materials
temperature
-20ºC to +180ºC
Stationary ring
B,Q2,U2
Pressure
<<1.2Mpa
Rotary ring
B,Q2,U2
Speed
<<15m/s
Secondary seal
V,E,P
Standard
DIN24960
Spring and metal parts
F,G
Application: clean water,sewage water, Oil and other moderately corrosive fluids
Description:
Operating Range:
1.LWB-12 is identical to sv- and svi- series lowara pumps
2. Our seals can replace the original seals.
3.Application: seals are primarily used in in Clean water,sewage water,oil and other moderately corrosive fluids etc
4.Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards
5.OEM and Customized products is welcomed.
Material:
Rotary Ring: Carbon/Sic/TC
Stationary Ring: Ceramic/Sic/TC
Secondary Seal:VIT/NBR/EPDM
Spring and Other Parts:SUS304/SUS316
Operational conditions: |
Materials |
||
temperature |
-20ºC to +180ºC |
Stationary ring |
B,Q2,U2 |
Pressure |
<<1.2Mpa |
Rotary ring |
B,Q2,U2 |
Speed |
<<15m/s |
Secondary seal |
V,E,P |
Standard |
DIN24960 |
Spring and metal parts |
F,G |
Application: clean water,sewage water, Oil and other moderately corrosive fluids |
