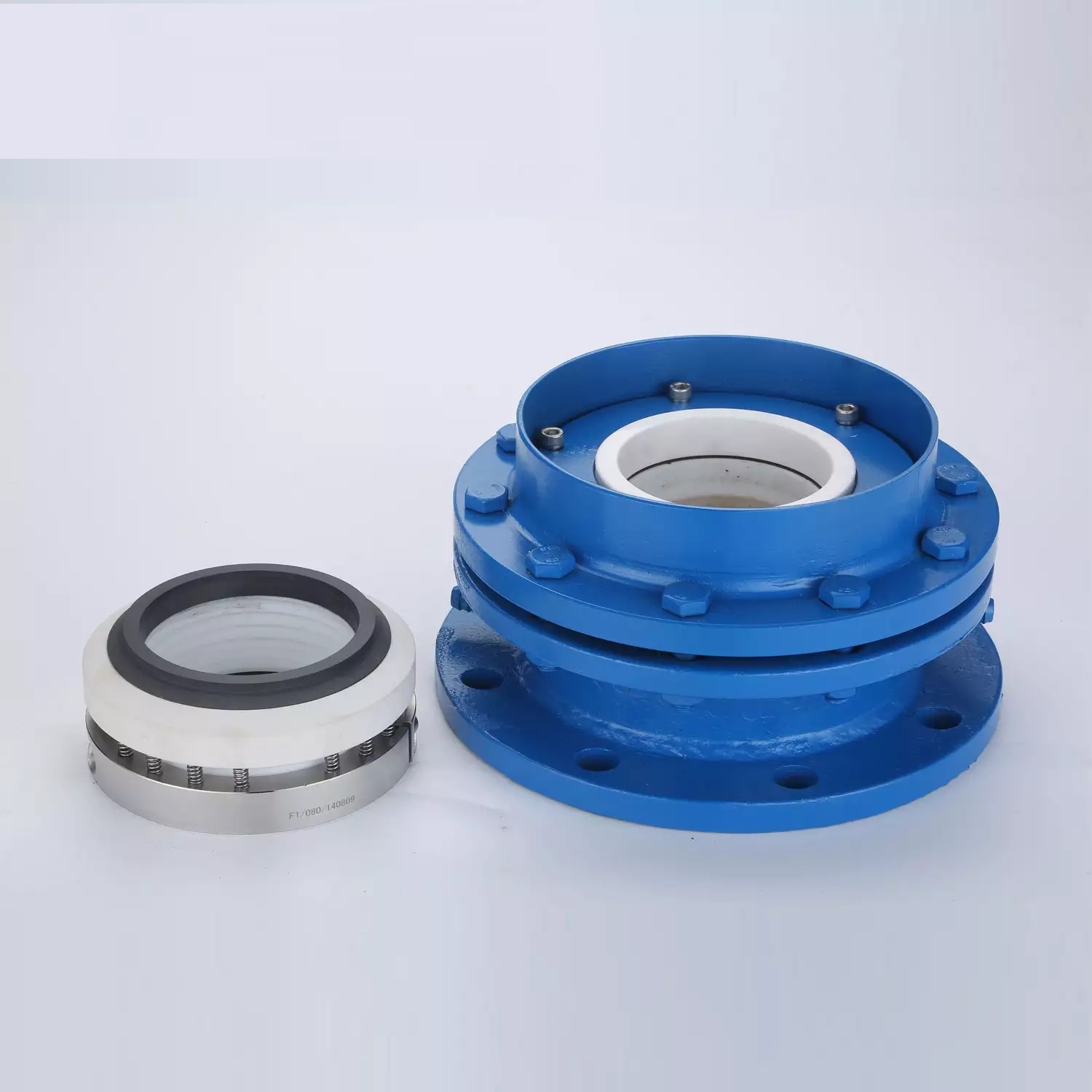

212 Cartridge Mechanical Seal with Water Tank Full Set of Dynamic and Static Ring For Reactor Chemical Pump

212 Mechanical Seal for Glass Lined Reactors and Vacuum Devices
Description:
Operating Range:
Structure: Single-End
Pressure: General Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: General Temperature Mechanical Seal
Performance: Wear and Corrosion
Standard: HG/T2057-2003
Model NO.: Type 212
Balance: Balanced
Specification: Inner Diameter: 40 mm to 180 mm
Material:
Rotary Ring Face: PTFE
Stationary Ring Face: 99%AL2O3/TC/SS304
Elastomers: FKM/PTFE
Springs: SS304/SS316
Metal Parts: SS304/Q235/Glass Lining


Operational conditions:		Materials
temperature	-20ºC to +180ºC	Stationary ring	B,Q2,U2
Pressure	<<1.2Mpa	Rotary ring	B,Q2,U2
Speed	<<15m/s	Secondary seal	V,E,P
Standard	DIN24960	Spring and metal parts	F,G
Application: clean water,sewage water, Oil and other moderately corrosive fluids

single end, multiple springs and PTFE bellow working together to provide compensation, balanced, independent rotary direction. The PTFE bellow can resist strong corrosion. The deflection of resistance can reach to 1.5 mm. This seal component has a compact structure and easy to install. When the medium temperature is above 80 ºC, cooling jacket is needed with water cooling.
