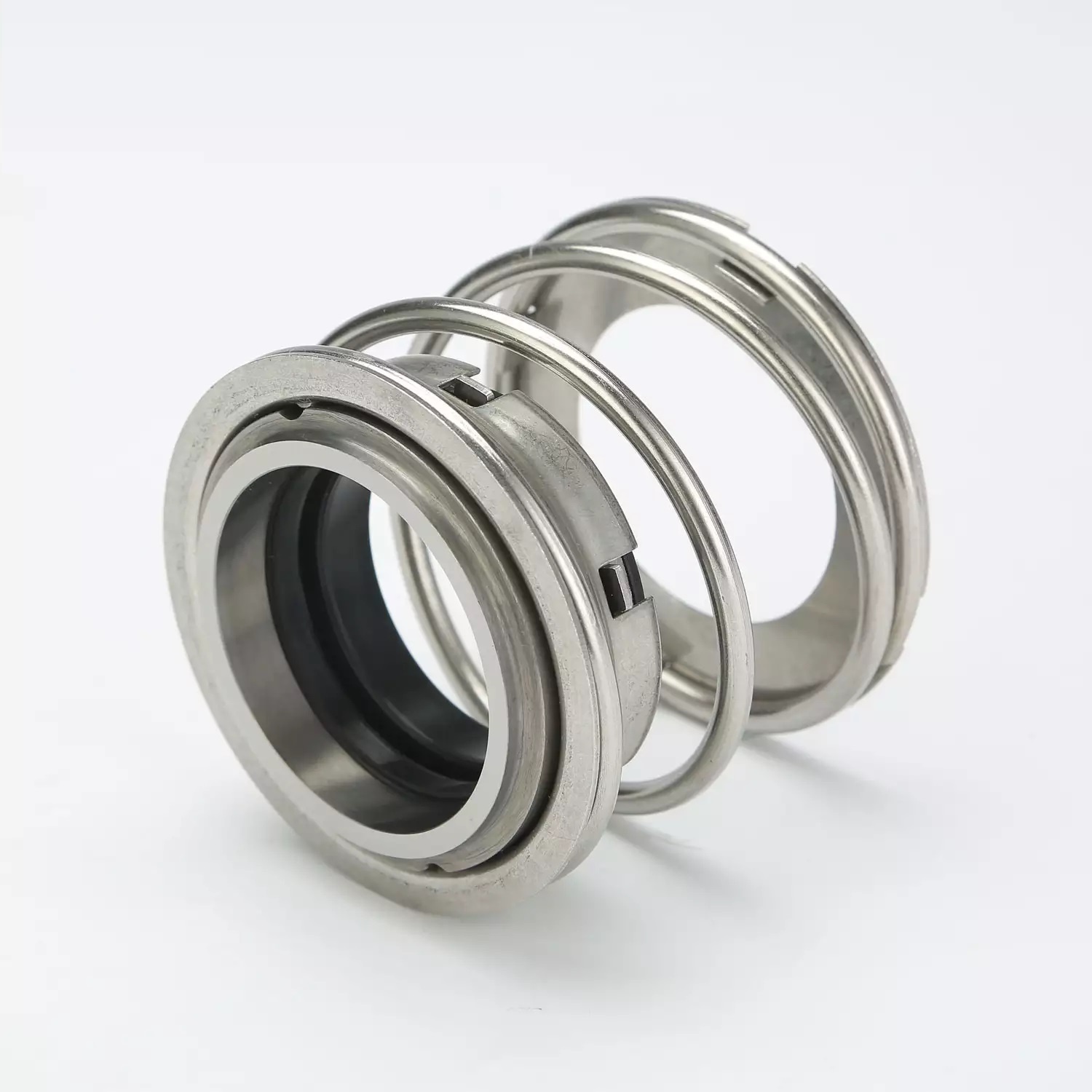

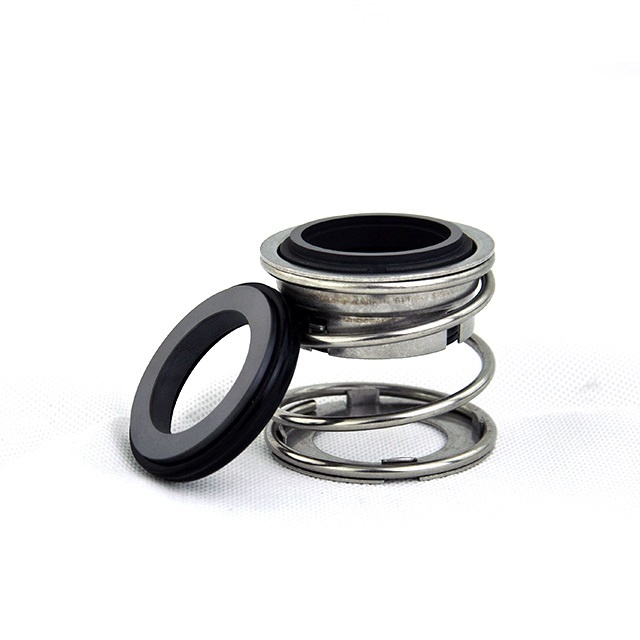

Burgman FBD Single Face Mechanical Seal for John crane type 2 JC2 Spring Elastomer Mechanical Seal Fbd with O-Ring

Description:
Operating Range:
Structure: Single End
Pressure: General Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: General Temperature Mechanical Seal
Performance: Wear, Weak Corrosion
Standard: ISO3069, GB6556, DIN24960
Model NO.: FBD
Balance: Unbalanced
Specification: Inner Diameter: 20 mm to 120 mm
Material:
Rotary Ring:   SiC / TC
O-Ring:  , EPDM,  NBR
Spring and Metal Parts: SUS304/SUS316
Stationary Ring:  CAR/SIC /TC



Operational conditions:		Materials
temperature	-20ºC to +180ºC	Stationary ring	B,Q2,U2
Pressure	<<1.2Mpa	Rotary ring	B,Q2,U2
Speed	<<15m/s	Secondary seal	V,E,P
Standard	DIN24960	Spring and metal parts	F,G
Application: clean water,sewage water, Oil and other moderately corrosive fluids
