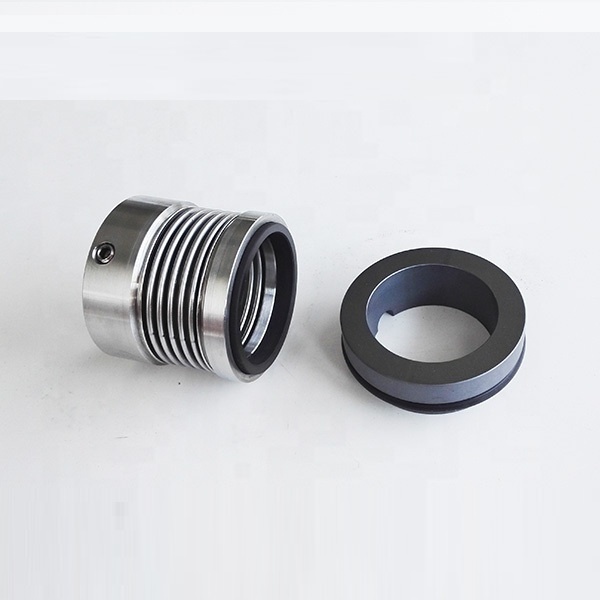

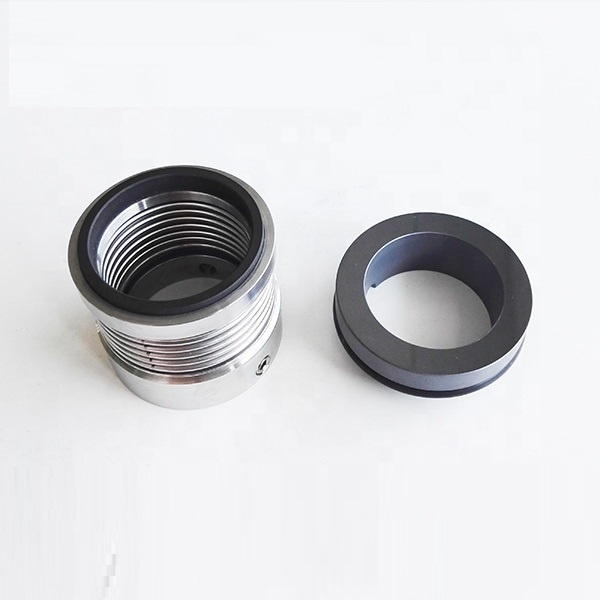

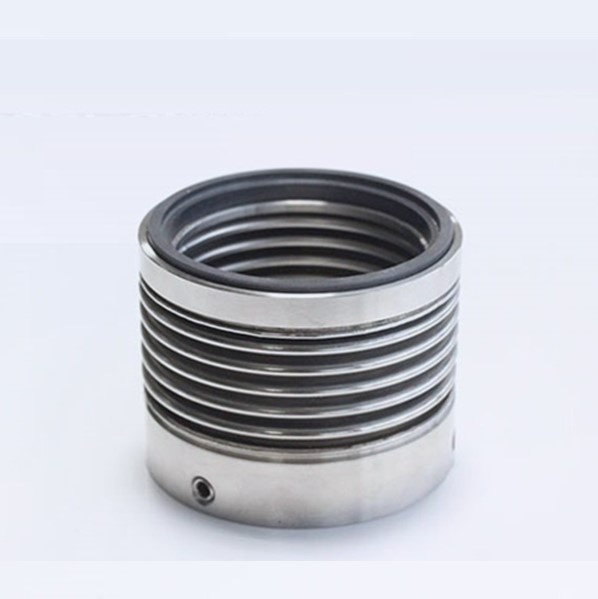

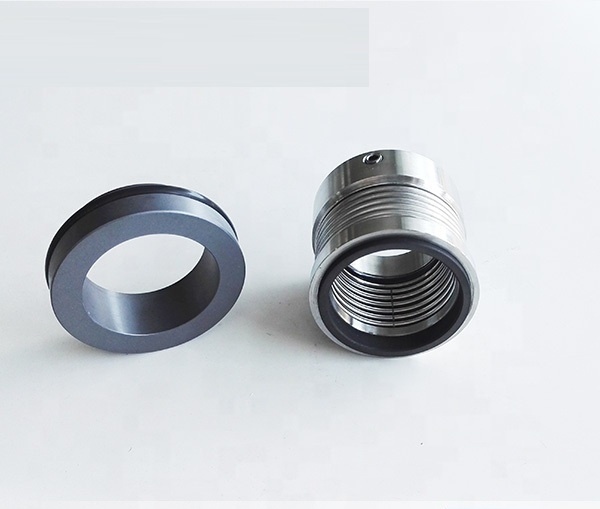

Burgmann MF95N For Centrifugal Pump Formed Metal Bellow Pump Mechanical Seal
Operating range:

Structure: Single-End

Pressure: Medium Pressure Mechanical Seals

Speed: High Speed Mechanical Seal

Temperature: High Temperature Mechanical Seal

Performance: Temperature

Standard: Standard

Model NO.: MF95N and 515E

Balance: Balanced

Specification: Inner Diameter: 18 mm to 100 mm

Temperature:-20℃-220℃

Speed:≦16M/S

Pressure:≦1.50Mpa

Size = 18mm to 100mm

0.75” to 4”

Material:

Stationary Ring: TC, Silicon Carbide
Rotary Ring: Carbon, Silicon Carbide, TC
Secondary Seal: NBR, EPDM, Viton
Bellows: Steel
Spring and Metal Parts: Steel

Structural Features: single end, balanced, independent direction of rotation, bellow transmission. The bellow provides sealing faces with the closing force and also transmits the torque.
The O-ring does not have axial movements so it has good tracing ability and strong capacity of resisting disturbance. This seal component is easy to install and adjust and has especially
good performances of being used in medium-and-low viscosity mediums.Industrial Standards: DIN24960, ISO3069, GB6556, EN12756

Scopes of Application: widely used in petrochemical engineering, oil refining, chemical processing, chemical fiber manufacturing, food and beverage processing, pharmacy, thermoelectricity and
paper making. Designed for chemical pumps, oil pumps, screw pumps, compressors and oil extraction equipment.

We are always committed to the imported mechanical seals localization and have accumulated a wealth of experience .

Our product range includes Component Seals, Metal Bellow Seals, Cartridge Seals, Agitator seals, Dry Gas Seals and Split Seals.
