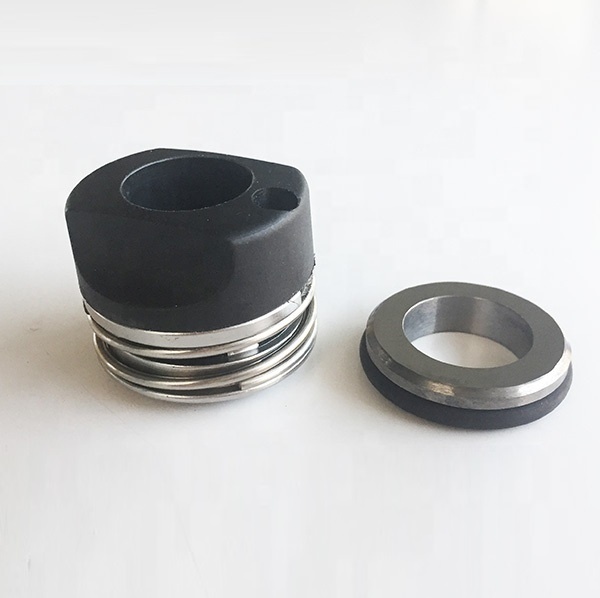

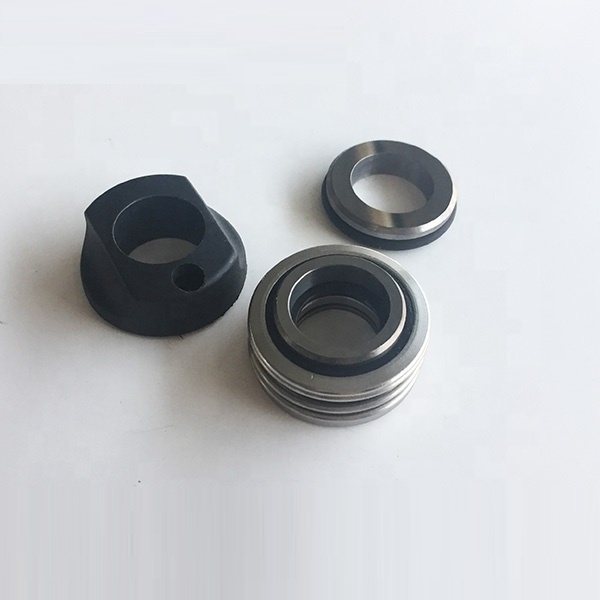

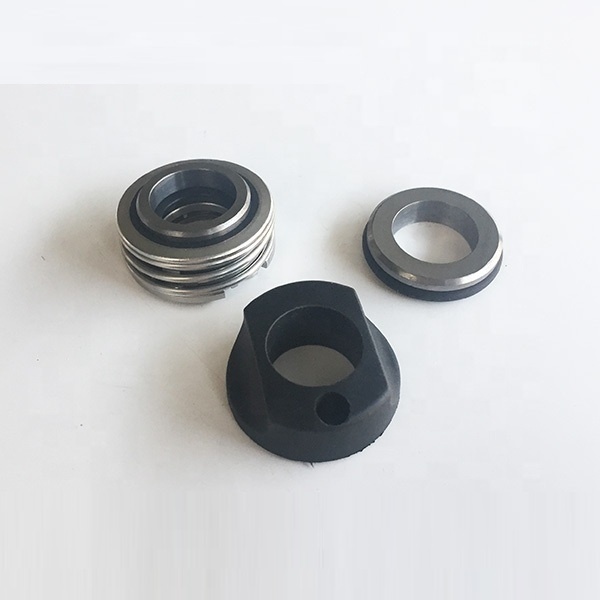

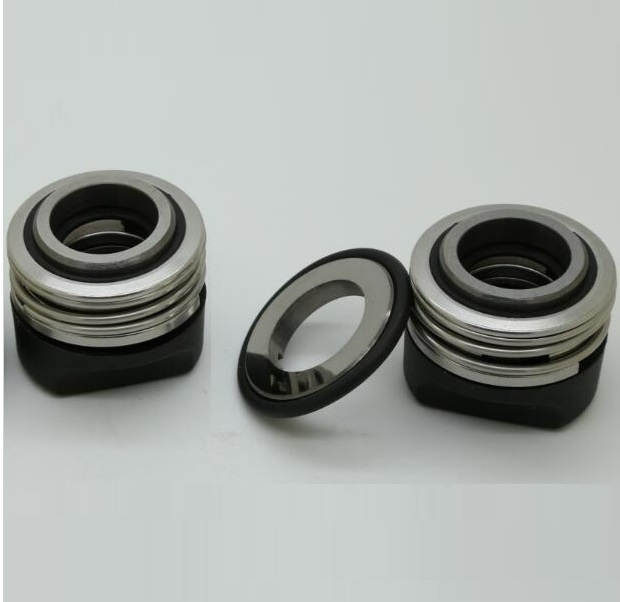

20MM Mechanical Seal For Flygt Seal 2066/2075/2101/3065/3080
- Product No.:Flygt Seal 20mm
20MM Mechanical Seal For Flygt Seal 2066/2075/2101/3065/3080
Operational Conditions:
- Cartridge Mechanical Seal in Tungsten carbide/Tungsten carbide/Viton-Tungsten carbide/Tungsten carbide/Viton
- To Suit Grindex Drainage Range Dewatering Pumps. Models: Minex, Minette, Minor, Major. Or Grindex Sludge Pump Range. Models: Salvador, Senior, Sandy.
- Temperature: -20ºC to +180ºC
- Pressure: ≤2.5MPa
- Speed: ≤15m/s
Materials:
- Stationary Ring: Ceramic, Silicon Carbide, TC
- Rotary Ring: Carbon, Silicon Carbide
- Secondary Seal: NBR, EPDM, Viton, PTFE
- Spring and Metal Parts: Steel
- 3. Seat Type:
- 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids
Performance Capabilities:
Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size2
20MM
Brand
BE
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
- 1. It is 25mm for Flygt 2101 Mechanical seal Pump replacement seal
- 2. Our seals can replace the original seals.
- 3.Application: seals are primarily used in the chemical sector and in water pumps.
- 4.Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards
- 5.OEM and Customized products is welcomed.
- 6. Factory Price,High Quality ,Fast Delivery and Best Sevice.
Operational Conditions:
- Cartridge Mechanical Seal in Tungsten carbide/Tungsten carbide/Viton-Tungsten carbide/Tungsten carbide/Viton
- To Suit Grindex Drainage Range Dewatering Pumps. Models: Minex, Minette, Minor, Major. Or Grindex Sludge Pump Range. Models: Salvador, Senior, Sandy.
- Temperature: -20ºC to +180ºC
- Pressure: ≤2.5MPa
- Speed: ≤15m/s
Materials:
- Stationary Ring: Ceramic, Silicon Carbide, TC
- Rotary Ring: Carbon, Silicon Carbide
- Secondary Seal: NBR, EPDM, Viton, PTFE
- Spring and Metal Parts: Steel
- 3. Seat Type:
- 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids
Performance Capabilities:
Temperature
|
-30℃ to 200℃, dependent on the elastomer
|
Pressure
|
Up to 10 bar
|
Speed
|
Up to 15 m/s
|
End play/axial float allowance
|
±0.1mm
|
Size2
|
20MM
|
Brand
|
BE
|
Face
|
Carbon, SiC, TC
|
Seat
|
Ceramic, SiC, TC
|
Elastomer
|
NBR, EPDM, etc.
|
Spring
|
SS304, SS316
|
Metal parts
|
SS304, SS316
|
Idividual Packing
|
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
|
- 1. It is 25mm for Flygt 2101 Mechanical seal Pump replacement seal
- 2. Our seals can replace the original seals.
- 3.Application: seals are primarily used in the chemical sector and in water pumps.
- 4.Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards
- 5.OEM and Customized products is welcomed.
- 6. Factory Price,High Quality ,Fast Delivery and Best Sevice.
FLYGT PUMP SEAL COMPARISON CHART
Flygt Pump Model
Shaft Size
Supseals Upper Seal
Supseals Lower Seal
3085-091,3085-120,3085-170,3085-171,3085-181,3085-280,3082-290,3085-890
20mm
FS-G-U20
FS-G-L20 or FS-H-L20
3101
28mm
FS-B-U28
FS-B-L28
3102
25mm
FS-J-U25
FS-J-L25
3126-90,3126-180
35mm
FS-K-U35
FS-K-L35
3126-91, 3126-280, 3126-290
35mm
FS-K-U35
FS-M-L35
3126-181, 3127
35mm
FS-M-U35
FS-M-L35
3140, 3152
45mm
FS-O-U45
FS-O-L45
3170, 3201
60mm
FS-Q-U60
FS-Q-L60
3200
60mm
FS-P-U60
FS-P-L60
3230, 3300-91, 3300-181,3300-280, 3300-980, 3305
90mm
FS-S-U90
FS-S-L80
3310, 3311, 3312, 3350, 3351
90mm~120mm
FS-S-U90
FS-T-L120
3355, 3356, 3357
90mm
FS-S-U90
FS-S-L80
3500, 3501,3530,3531,3600,3601, 3602
90mm~120mm
FS-S-U90
FS-T-L120
4351, 4352, 4400
20mm
FS-G-U20
FS-H-L20
4410, 4430
60mm
/
FS-Q-L60
4440, 5530
35mm
FS-M-U35
FS-M-L35
4650, 4660
45mm
FS-O-U45
FS-O-L45
4670, 4680, 7045
60mm
FS-Q-U60
FS-Q-L60
7050, 7051, 7055, 7060,7061,7076, 7556
90mm
FS-S-U90
FS-S-L80
7080, 7115
90mm~80mm/90mm~120mm
FS-S-U90
FS-S-L80 /FS-T-L120
7570, 7585
90mm~120mm
FS-S-U90
FS-T-L120
Grindex Maior, Master, Matador,Midi, Minette, Salvador
25mm~24mm
FS-Z-U25
FS-Z-L24
Grindex Maxi
45mm
FS-O-U45
FS-N-L45
Ready models 4 8 12 & 16
15mm
FS-D-U15
/
Ready 24
20mm
FS-A-U20
FS-A-L20
Ready 90
28mm
FS-I-U28
FS-I-L28
Steaty 7
20mm
FS-G-U20
FS-G-L20
600
60mm
FS-Q-U60
FS-Q-L60
605, 615, 665, 670, 680
90-80mm
FS-S-U90
FS-S-L80
705, 715, 720, 721, 735, 745, 760, 765, 770, 775
90mm~80mm/90mm~120mm
FS-S-U90
FS-S-L80/FS-T-L120
820, 840, 841, 860 ,880, 881, 900
90mm~80mm/90mm~120mm
FS-S-U90
FS-S-L80/FS-T-L120
2004, 2008, 2012, 2016
15mm
FS-D-U15
/
2024
20mm
FS-A-U20
FS-A-L20
2050, 2052
15mm
FS-D-U15
/
2060
20mm
FS-G-U20
FS-G-L20
2066
20mm
FS-A-U20
FS-A-L20
2070
22mm
FS-E-U22
FS-E-L22
2071
22mm
FS-E-U22
FS-E-L22
2075
20mm
FS-A-U20
FS-A-L20
2082, 2090, 2125, 2140
28mm
FS-I-U28
FS-I-L28
2084, 2135
35mm
FS-K-U35
FS-K-L35
2101
20mm
FS-A-U20
FS-A-L20
2102-40
22mm
FS-E-U22
FS-E-L22
2151-10
35mm
FS-K-U35
FS-K-L35
2151-11, 2151-50
35mm
FS-K-U35
FS-L-L35
2201-10,2201-320,2201-430,2201-480
45-35mm
FS-O-U45
FS-K-L35
2201-590, 2201-690
45mm
FS-O-U45
FS-O-L45
2201-11HT or MT
45-35mm
FS-N-U45
FS-N-L35
2201-11LT
45mm
FS-O-U45
FS-N-L45
2250, 2290
60mm
FS-P-U60
FS-P-L60
2400
60mm
FS-R-U60
FS-R-L60
3041-281
20mm
FS-G-U20
FS-G-L20
3057
20mm
FS-G-U20
FS-H-L20
3057-180, 3060
20mm
FS-G-U20
FS-G-L20
3065
20mm
FS-A-U20
FS-A-L20
3067-170, 3067-250, 3068
20mm
FS-G-U20
FS-G-L20
3080
20mm
FS-A-U20
FS-A-L20
3082
22mm
FS-E-U22
FS-E-L22
3231
90-75mm
FS-S-U90
FS-U-L75
We are always committed to the imported mechanical seals localization and have accumulated a wealth of experience .
Our product range includes Component Seals, Metal Bellow Seals, Cartridge Seals, Agitator seals, Dry Gas Seals and Split Seals.
To great our service, we present the products and solutions while using the very good top quality at the reasonable cost for Metal Bellow Mechanical Seals. To ensure you get what exactly you
need, our professional team will help you work through all the details straight to your target. With our powerful team support, you would not have to worry about anything. Our company establishes the
management system in strict accordance with the requirements of international standards and makes detailed after-sales service commitment.
FLYGT PUMP SEAL COMPARISON CHART | |||
Flygt Pump Model | Shaft Size | Supseals Upper Seal | Supseals Lower Seal |
3085-091,3085-120,3085-170,3085-171,3085-181,3085-280,3082-290,3085-890 | 20mm | FS-G-U20 | FS-G-L20 or FS-H-L20 |
3101 | 28mm | FS-B-U28 | FS-B-L28 |
3102 | 25mm | FS-J-U25 | FS-J-L25 |
3126-90,3126-180 | 35mm | FS-K-U35 | FS-K-L35 |
3126-91, 3126-280, 3126-290 | 35mm | FS-K-U35 | FS-M-L35 |
3126-181, 3127 | 35mm | FS-M-U35 | FS-M-L35 |
3140, 3152 | 45mm | FS-O-U45 | FS-O-L45 |
3170, 3201 | 60mm | FS-Q-U60 | FS-Q-L60 |
3200 | 60mm | FS-P-U60 | FS-P-L60 |
3230, 3300-91, 3300-181,3300-280, 3300-980, 3305 | 90mm | FS-S-U90 | FS-S-L80 |
3310, 3311, 3312, 3350, 3351 | 90mm~120mm | FS-S-U90 | FS-T-L120 |
3355, 3356, 3357 | 90mm | FS-S-U90 | FS-S-L80 |
3500, 3501,3530,3531,3600,3601, 3602 | 90mm~120mm | FS-S-U90 | FS-T-L120 |
4351, 4352, 4400 | 20mm | FS-G-U20 | FS-H-L20 |
4410, 4430 | 60mm | / | FS-Q-L60 |
4440, 5530 | 35mm | FS-M-U35 | FS-M-L35 |
4650, 4660 | 45mm | FS-O-U45 | FS-O-L45 |
4670, 4680, 7045 | 60mm | FS-Q-U60 | FS-Q-L60 |
7050, 7051, 7055, 7060,7061,7076, 7556 | 90mm | FS-S-U90 | FS-S-L80 |
7080, 7115 | 90mm~80mm/90mm~120mm | FS-S-U90 | FS-S-L80 /FS-T-L120 |
7570, 7585 | 90mm~120mm | FS-S-U90 | FS-T-L120 |
Grindex Maior, Master, Matador,Midi, Minette, Salvador | 25mm~24mm | FS-Z-U25 | FS-Z-L24 |
Grindex Maxi | 45mm | FS-O-U45 | FS-N-L45 |
Ready models 4 8 12 & 16 | 15mm | FS-D-U15 | / |
Ready 24 | 20mm | FS-A-U20 | FS-A-L20 |
Ready 90 | 28mm | FS-I-U28 | FS-I-L28 |
Steaty 7 | 20mm | FS-G-U20 | FS-G-L20 |
600 | 60mm | FS-Q-U60 | FS-Q-L60 |
605, 615, 665, 670, 680 | 90-80mm | FS-S-U90 | FS-S-L80 |
705, 715, 720, 721, 735, 745, 760, 765, 770, 775 | 90mm~80mm/90mm~120mm | FS-S-U90 | FS-S-L80/FS-T-L120 |
820, 840, 841, 860 ,880, 881, 900 | 90mm~80mm/90mm~120mm | FS-S-U90 | FS-S-L80/FS-T-L120 |
2004, 2008, 2012, 2016 | 15mm | FS-D-U15 | / |
2024 | 20mm | FS-A-U20 | FS-A-L20 |
2050, 2052 | 15mm | FS-D-U15 | / |
2060 | 20mm | FS-G-U20 | FS-G-L20 |
2066 | 20mm | FS-A-U20 | FS-A-L20 |
2070 | 22mm | FS-E-U22 | FS-E-L22 |
2071 | 22mm | FS-E-U22 | FS-E-L22 |
2075 | 20mm | FS-A-U20 | FS-A-L20 |
2082, 2090, 2125, 2140 | 28mm | FS-I-U28 | FS-I-L28 |
2084, 2135 | 35mm | FS-K-U35 | FS-K-L35 |
2101 | 20mm | FS-A-U20 | FS-A-L20 |
2102-40 | 22mm | FS-E-U22 | FS-E-L22 |
2151-10 | 35mm | FS-K-U35 | FS-K-L35 |
2151-11, 2151-50 | 35mm | FS-K-U35 | FS-L-L35 |
2201-10,2201-320,2201-430,2201-480 | 45-35mm | FS-O-U45 | FS-K-L35 |
2201-590, 2201-690 | 45mm | FS-O-U45 | FS-O-L45 |
2201-11HT or MT | 45-35mm | FS-N-U45 | FS-N-L35 |
2201-11LT | 45mm | FS-O-U45 | FS-N-L45 |
2250, 2290 | 60mm | FS-P-U60 | FS-P-L60 |
2400 | 60mm | FS-R-U60 | FS-R-L60 |
3041-281 | 20mm | FS-G-U20 | FS-G-L20 |
3057 | 20mm | FS-G-U20 | FS-H-L20 |
3057-180, 3060 | 20mm | FS-G-U20 | FS-G-L20 |
3065 | 20mm | FS-A-U20 | FS-A-L20 |
3067-170, 3067-250, 3068 | 20mm | FS-G-U20 | FS-G-L20 |
3080 | 20mm | FS-A-U20 | FS-A-L20 |
3082 | 22mm | FS-E-U22 | FS-E-L22 |
3231 | 90-75mm | FS-S-U90 | FS-U-L75 |
We are always committed to the imported mechanical seals localization and have accumulated a wealth of experience .
Our product range includes Component Seals, Metal Bellow Seals, Cartridge Seals, Agitator seals, Dry Gas Seals and Split Seals.
To great our service, we present the products and solutions while using the very good top quality at the reasonable cost for Metal Bellow Mechanical Seals. To ensure you get what exactly you
need, our professional team will help you work through all the details straight to your target. With our powerful team support, you would not have to worry about anything. Our company establishes the
management system in strict accordance with the requirements of international standards and makes detailed after-sales service commitment.
